Removable anchor with locking function

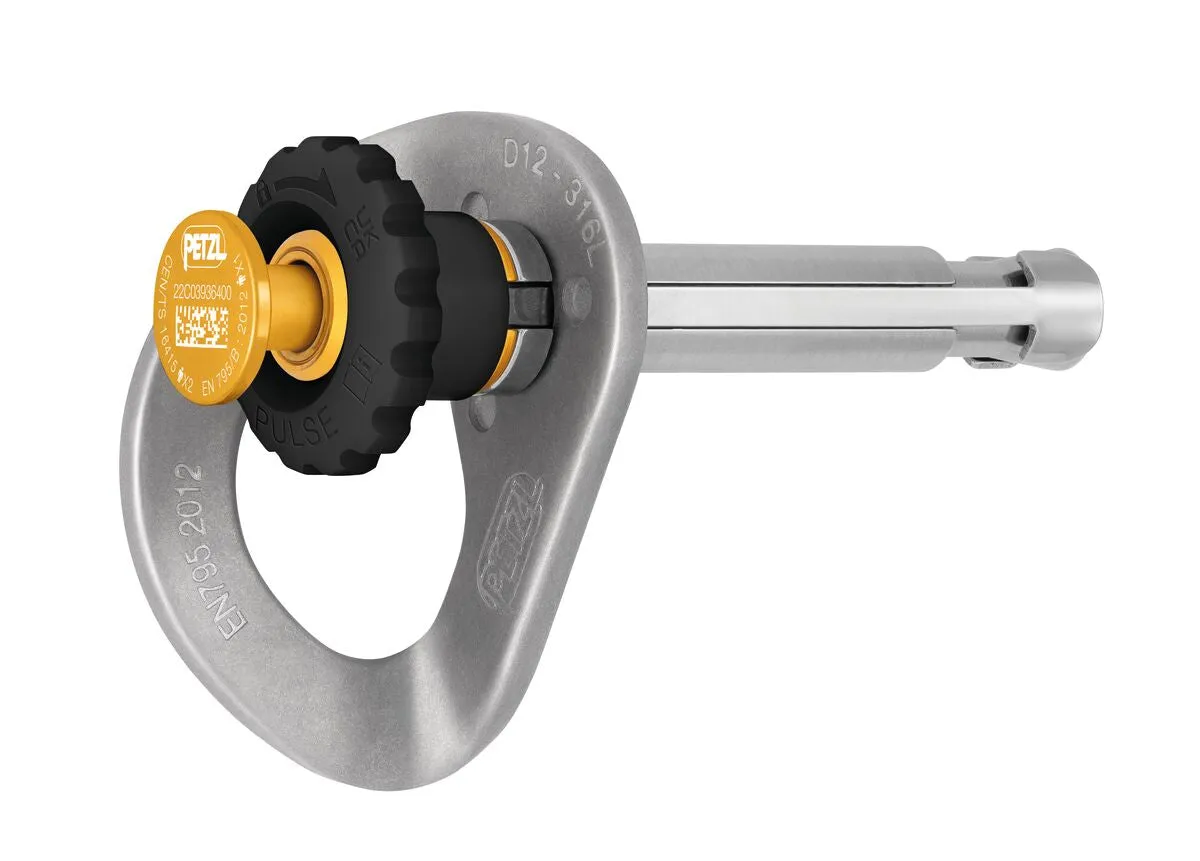

The COEUR PULSE 12 mm is a removable, high-quality stainless steel anchor that can be installed and removed for reuse very simply and rapidly without tools. The locking function limits the risk of accidental removal. The COEUR hanger can rotate once installed and when laterally loaded during use, allowing it to better align with the systems in place.
- Easy to use:

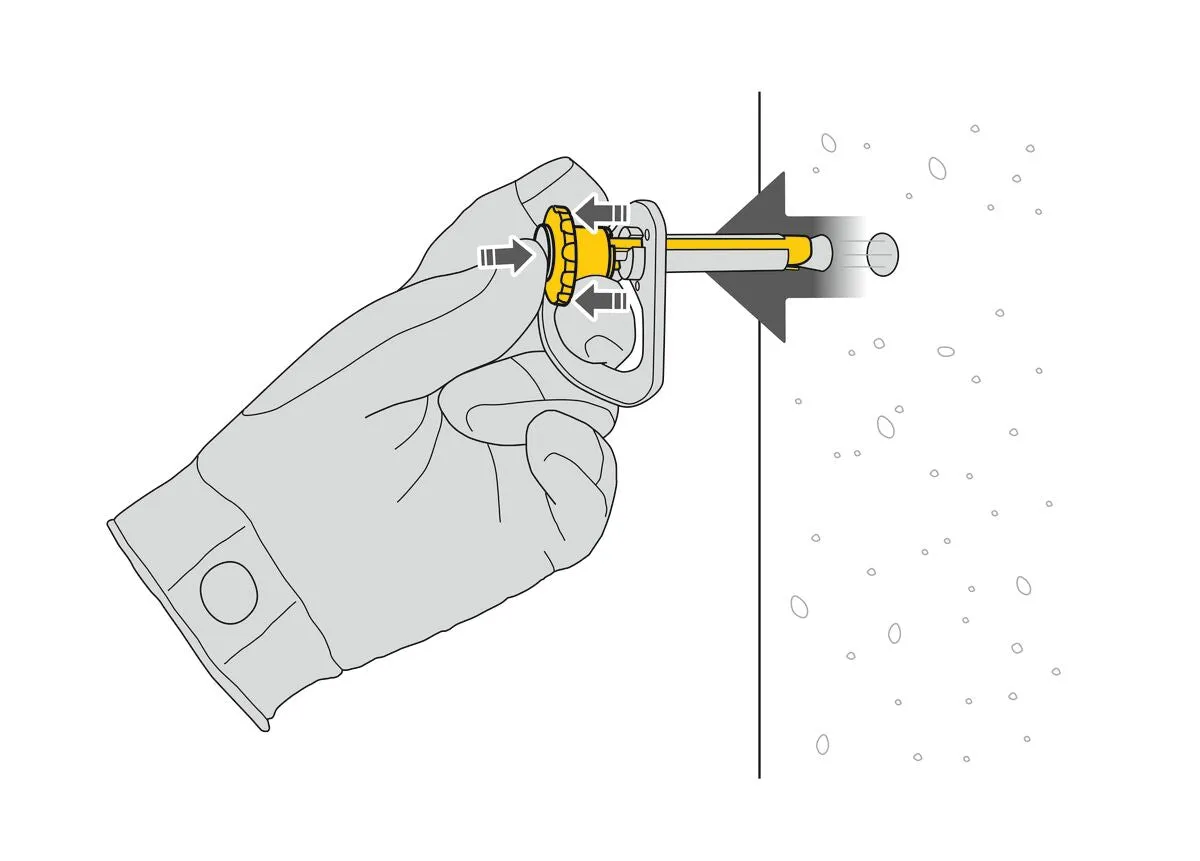

- Quick and simple to install and remove without tools, so it can be reused

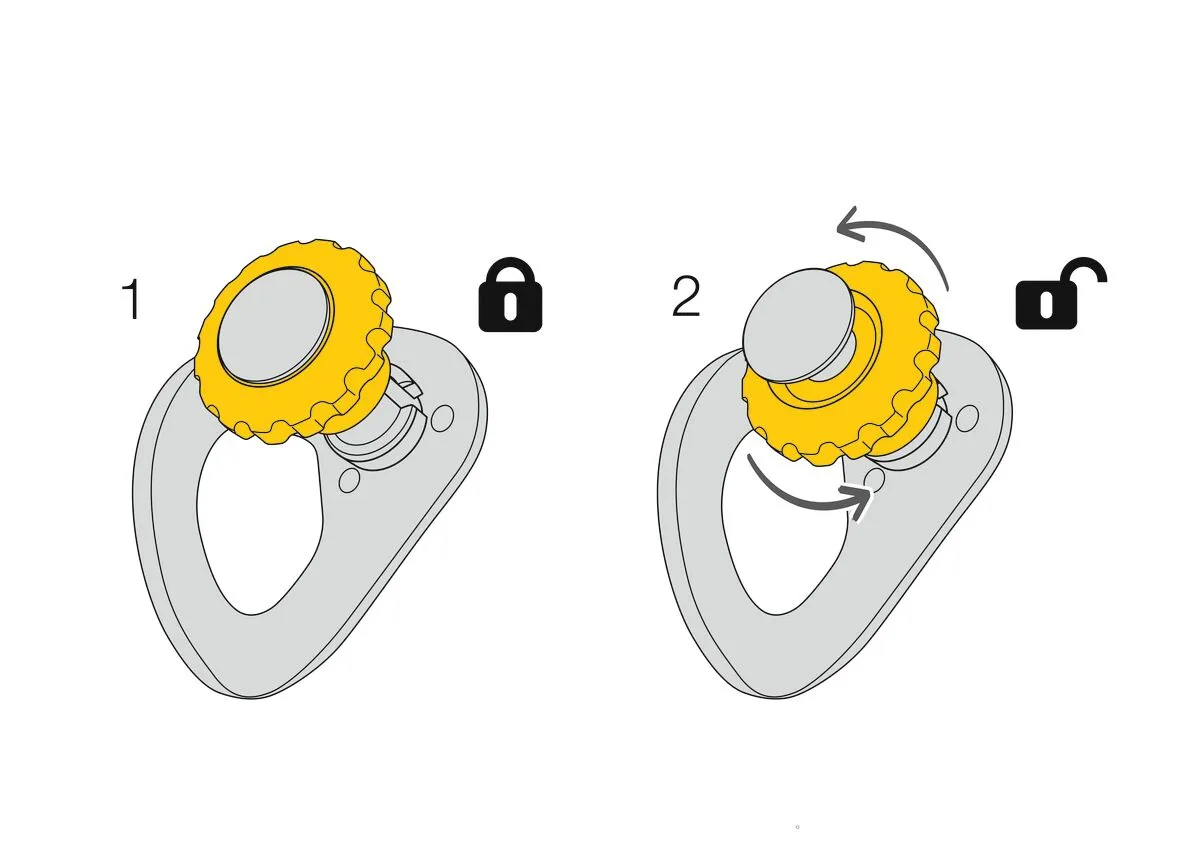

- Locking function limits the risk of accidental removal
- The locking knob is easy to handle, even with gloves
- Easy to clip:

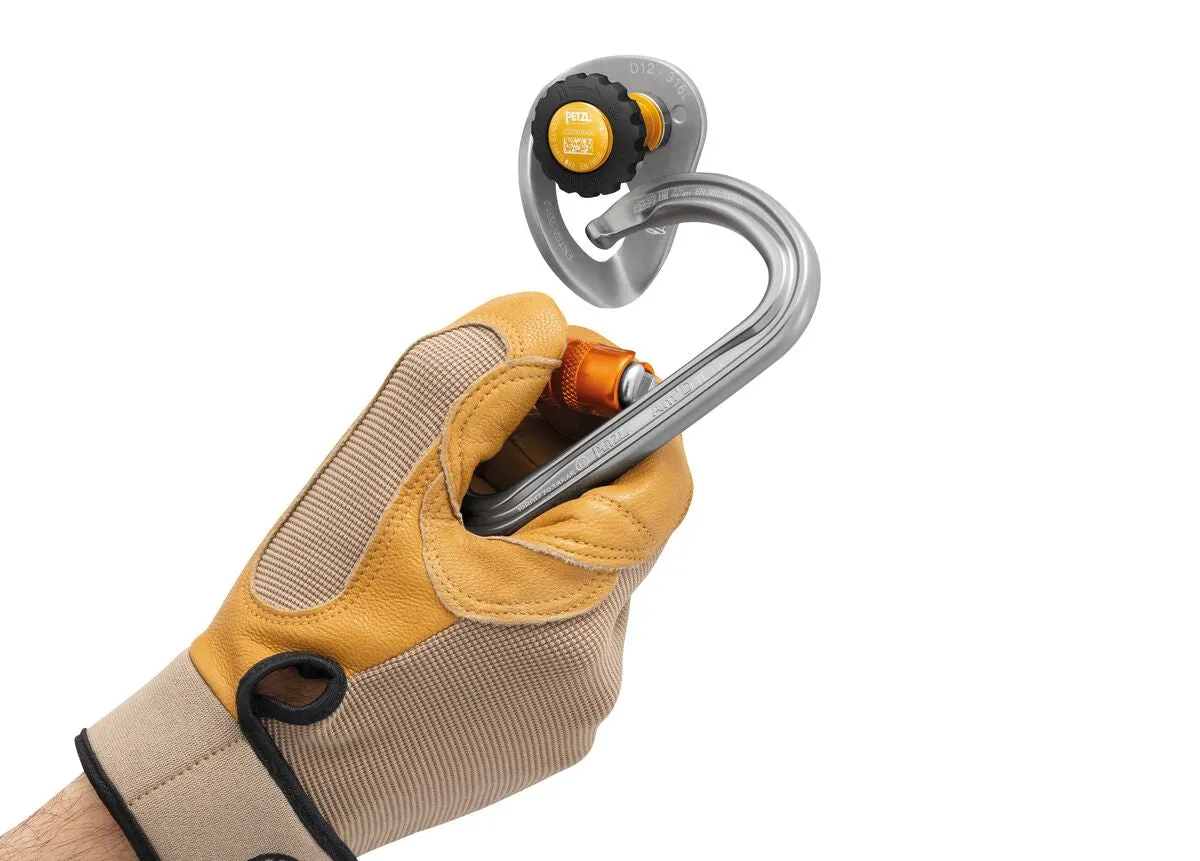

- Wide, ergonomic hanger opening makes it easier to clip a carabiner
- Hanger opening is wide enough to accommodate two carabiners at the same time
- Thickness and rounded edges of the COEUR hanger help reduce wear on carabiners

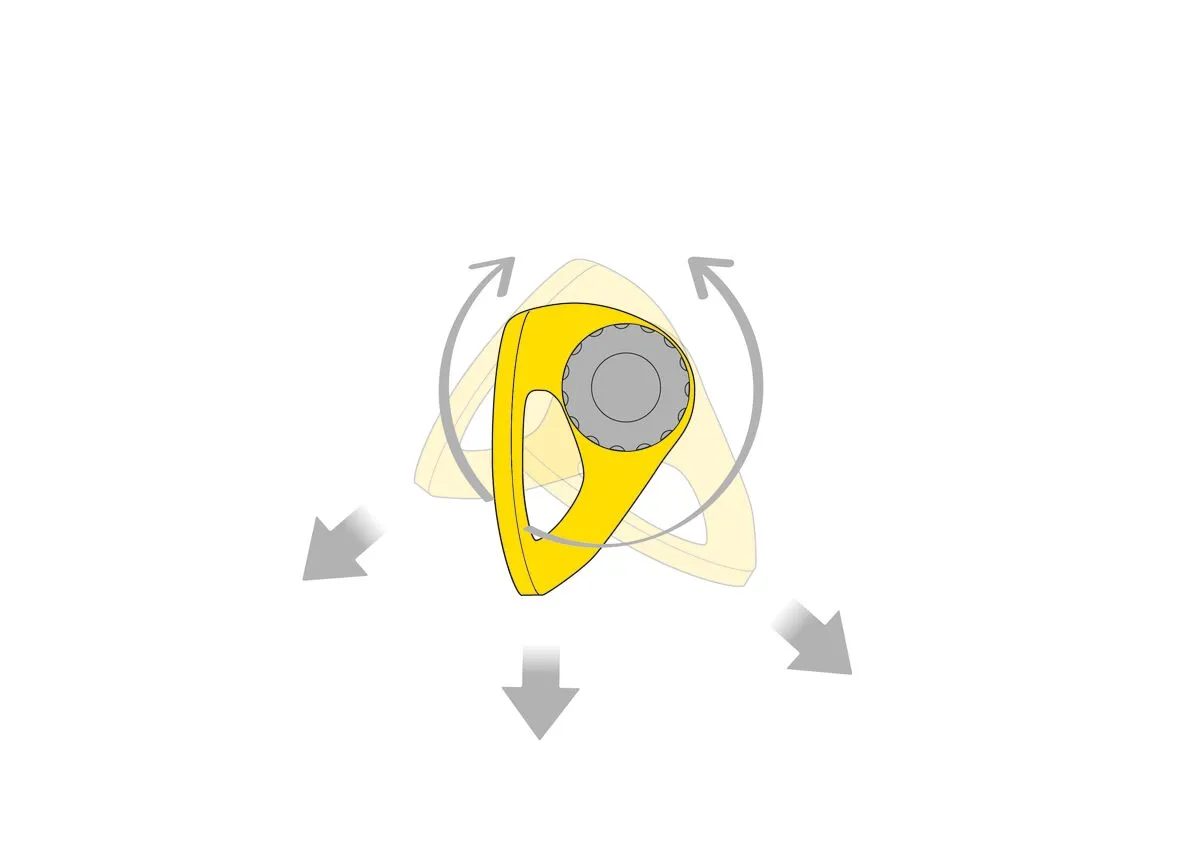

Hanger rotation:
- COEUR hanger can rotate once installed and when laterally loaded during use, so it aligns with the pull of the connector
Specifications
- Material(s): Stainless steel, plastic
- Certification(s): CE EN 795 B, CE EN 959, TS 16415, GB 30862/B, UKCA
References
| References | G037BA00 |
|---|---|
| Diameter | 12 mm |
| Weight | 140 g |
| Drilling depth | 6,5 cm |
| Drilling diameter | 12 mm |
| Shear strength in 50 MPa concrete | > 25 kN |
| Pull-out strength in concrete 50 MPa | > 20 kN |
| Shear strength in 25 MPa concrete | 25 kN |
| Pull-out strength in concrete 25 MPa | 20 kN |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
| Price | $69.95 |
